Front Axle
The Wheel bearings on the front axle consist of a pair of tapered roller bearings at each wheel, whereas the rear axle has a single ball bearing at each wheel. The front axle bearings are lubricated with grease applied at assembly, whereas the rear wheel bearing is sealed for life. The front bearing cups are easily removed with a drift such as a cold chisel, whereas the rear bearing needs to be removed with a 50 ton press at best, or a special tool can be used to screwpress the axle clear. As a last resort one can (with the backplate still attached) ram the bare axle down onto a hard surface to "shock" the bearing and coller off, but this method is a last resort!!!
!

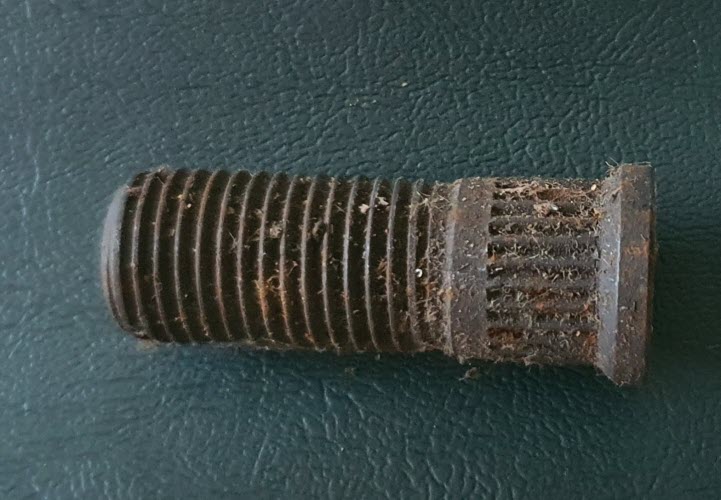

Wheel stud NOS

Genuine Series 1 wheelstud. Limited quantity.

Cheaper repro items are available but they are a little shorter than the originals

Leather gaiter kit, for Chrome Balls

Optional Leather protection kit, covers and protects both front chrome swivel balls with Leather boots.

Front axle inner shaft long 1948-53 NOS

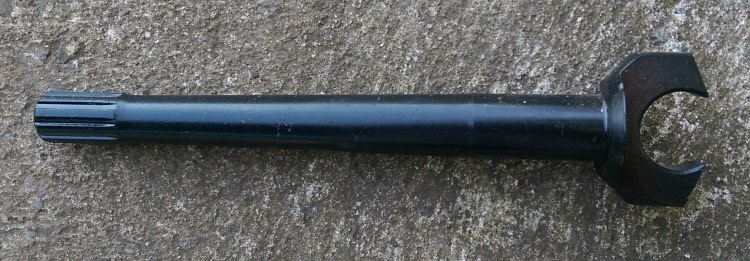

Output shaft - front swivel 1948-53 NOS

Tractor joint type axle, fits left or right. One only.

Output shaft - front swivel 1948-53 used

excellent used condition. Tractor joint type axle, fits left or right. Handy spare for all 1948-53 80 inch models.

Chrome Swivel Housing NOS genuine

Genuine NOS chrome swivel Ball, New in box with greasepaper. Limit 2 per customer. Cheaper Reproduction items also available

types to Suit 80 inch and 86/88/107/109

limit 2 per customer.

Hub Grease - "One Shot swivel housing sachet"

This is a genuine easy to use grease blend suitable for 1 swivel housing. You can make a similar brew by mixing heavy oil with grease, but it can get a bit messy!!!

Grooved pin fixing swivel pin

2 used per vehicle

Genuine NOS

a121

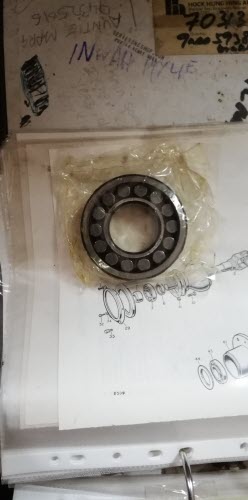

Swivel pin bearing (Made in japan)

You are buying a single bearing, cup and cone. Please order 2 or 4 if you need more.

made in japan, fits both top and bottom in chrome swivel housing.

217268



Chrome Swivel Oil seal

Large chrome ball seal. 2 per vehicle.

Front Wheel Bearing - small (NOS)

Front Wheel Bearing outer -  cup and cone.

Genuine Timken in original Land Rover packet

Limit 4 per customer

Front Wheel Bearing - small (high quality)

Front Wheel Bearing outer -  cup and cone.

Not Timken, 2 year warranty.



Oil Seal - Front wheel bearing 1948-58 (OEM)

This is the oil seal fitted near the front wheel bearings on all models 1948-58.

Front Wheel Bearing - inner (NOS)

Front Wheel Bearing inner -  cup and cone.

Rover Part number 217269

Genuine Timken in original landrover packet

Limit 4 per customer

Front Wheel Bearing - inner (high quality)

Front Wheel Bearing inner -  cup and cone.

Rover Part number 217269

High quality bearing 2 year warranty.

Drive flange genuine used

genuine used some spline wear but vgc.

Drive Flange gasket genuine NOS

Genuine NOS. if you buy 10 you will get them in the original packet.

231505 Genuine

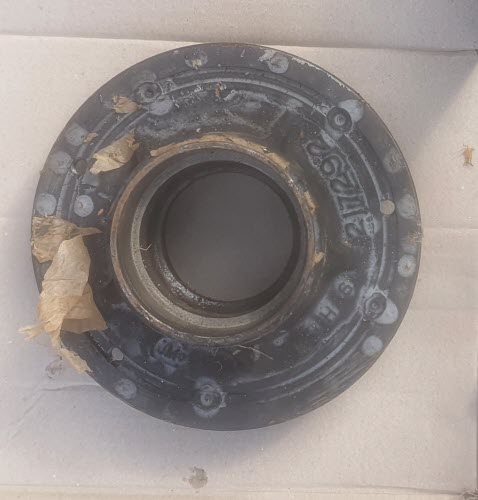

Wheel hub used - repaired

Wheel hub with 5 studs.

Some studs have weld on the back or have been replaced with splined studs. Stud length may not be equal, some studs may be a few milimetres shorter than the others, that may be important for a show vehicle but won't matter for normal use.

Wheel hub as new. 48-58 models

Wheel hub with 5 studs.
